Pyrolysis equipment is machine that decomposes organic materials by heating in the hypoxic environment. Pyrolysis process can transforms waste into valuable resources. The main components of HUAYIN pyrolysis equipment include: ① feeding system; ② pyrolysis reactor; ③ oil and gas condensation system; ④ carbon black discharging system; ⑤ exhaust gas purification system.
What raw materials can be processed by pyrolysis equipment?
Pyrolysis equipment can process a variety of organic waste, mainly including: waste tires, waste plastics (PVCPET are not suitable), oil sludge and paint residue, biomass, etc.
What is the final products of pyrolysis equipment?

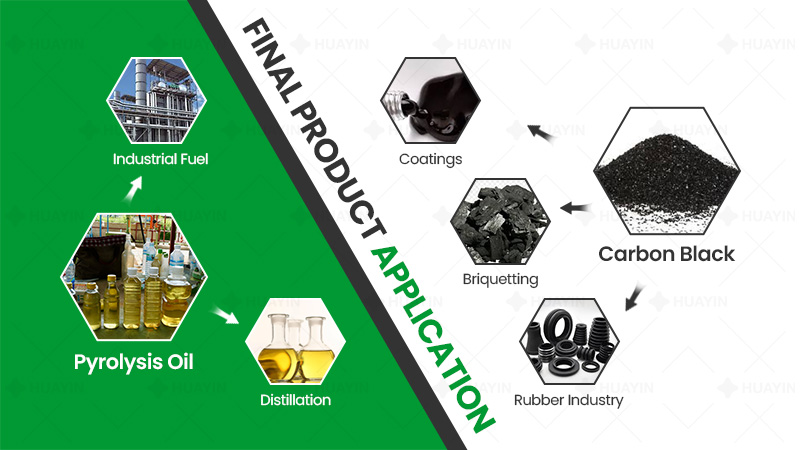

Different raw materials will produce different final products. The main products of huayin pyrolysis equipment include:
Pyrolysis Oil
The yield of tire pyrolysis oil is approximately 45%, while the yield of plastic pyrolysis oil is between 50% and 75%.
Pyrolysis oil can be used directly for industrial or boiler heating (e.g., in cement plants, steel mills, and glass factories). Alternatively, it can be refined into non-standard diesel fuel for trucks, tractors, and other applications using distillation equipment.
Carbon Black (approximately 30%)
It can be pressed into pellets for use in industrial heating. Pellets are a good alternative to coal as its calorific value is equivalent to that of coal.
Steel Wire (approximately 15%, when tires are used as the raw material)
Steel Wire can be sold to scrap recycling centers, steel smelters, and other sources.
Pyrolysis Gas (approximately 10%)
Pyrolysis gas, also known as syngas, can be recycled back into the furnace through a gas recycle system to heat the reactor, saving fuel.
Types of Huayin pyrolysis equipment
HUAYIN pyrolysis equipment mainly include continuous, semi-continuous, and batch types, with processing capacities ranging from 10kg to 50tons. Refer to the table below:
| Model | Appearance | Capacity | Applicable Scale and Features |
|---|---|---|---|

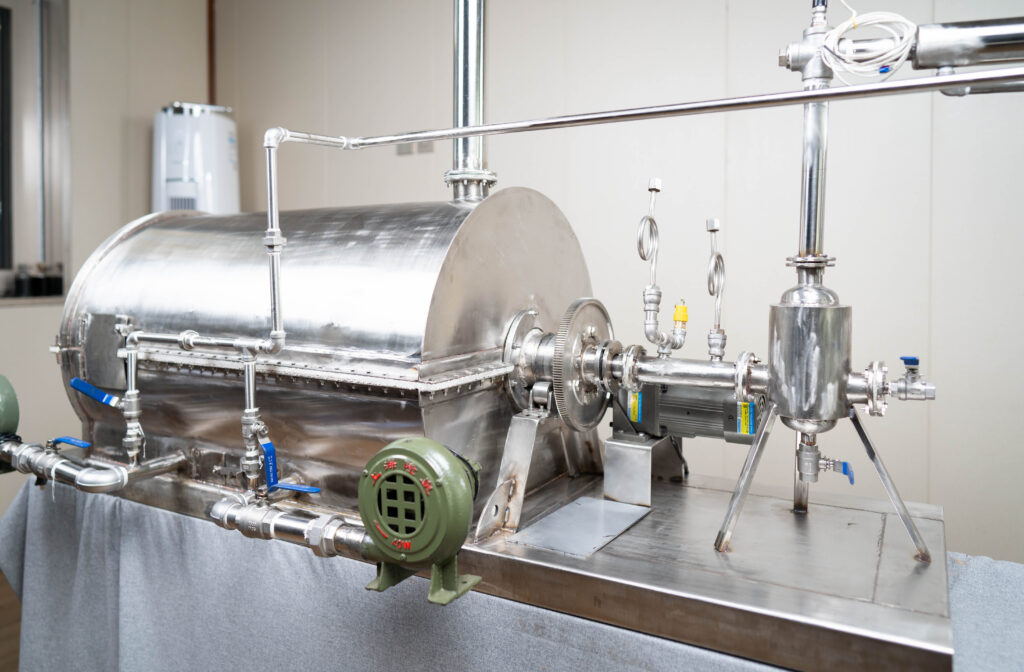

| Model M |  |
10KG | Testing, Experimentation, Demonstration |

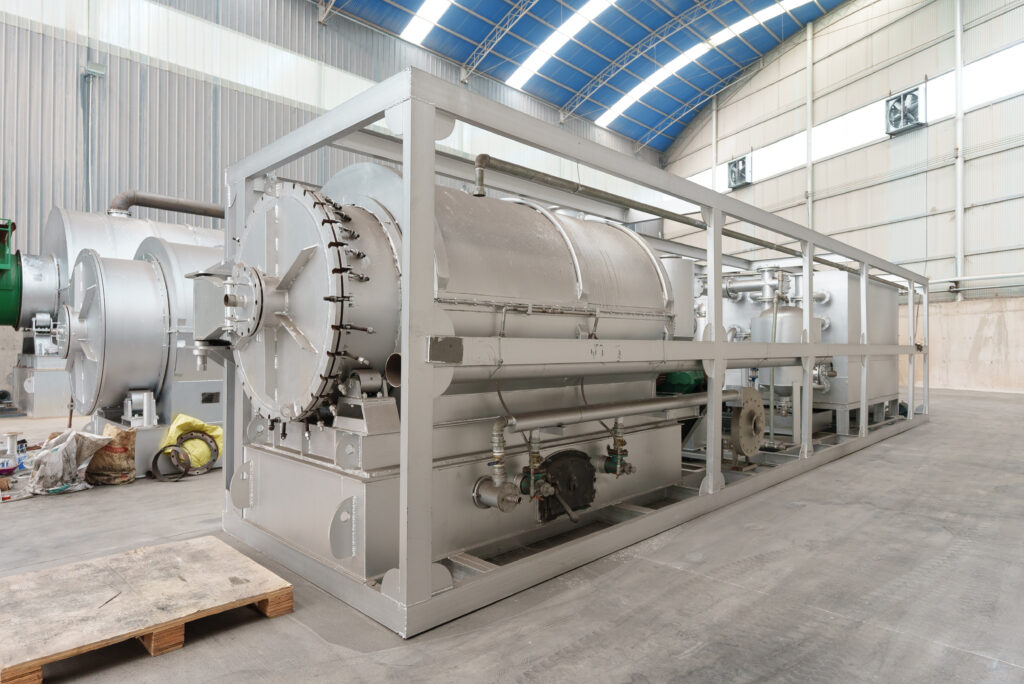

| Model F |  |
750KG-4T | Small Batch Pyrolysis Plant, Modular Design |

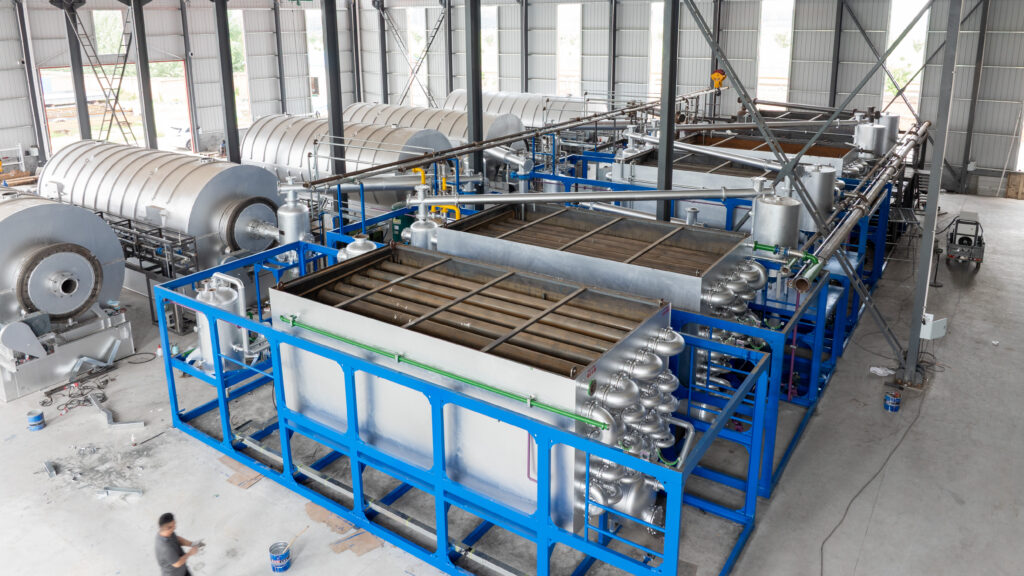

| Model C |  |
5T-15T | Large Scale Batch Pyrolysis Plant |
| Model G |  |
5T-15T | Batch Pyrolysis Plant with Wax-oil Separation |

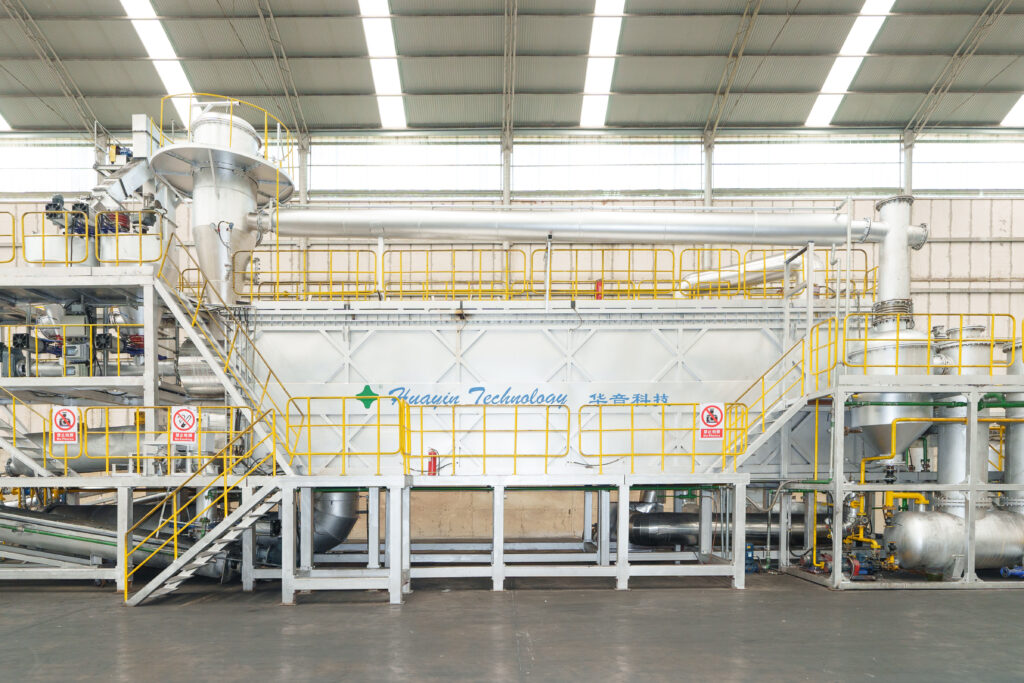

| Model S |  |
30T-50T
|
Fully Continuous Pyrolysis Plant |
Working video of HUAYIN pyrolysis equipment
The working process of HUAYIN pyrolysis equipment mainly includes feeding – pyrolysis – cooling – discharging – purification. Click to watch the video.
HUAYIN pyrolysis equipment have been exported to more than 100 countries and regions around the world, such as the United States, India, Russia, Malaysia, Mexico, Finland, Chile, Uganda, UAE, Bangladesh, Spain, Australia, Brazil, etc. Our high-quality pyrolysis plant have received praise from many customers. If you are also interested in HUAYIN pyrolysis equipment, please contact us for more information.
